0716-2426962U6F系列/Φ6.35X32玻璃管快斷保險絲

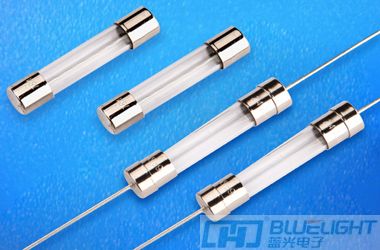

藍光U6F系列玻璃管快斷保險絲簡介：

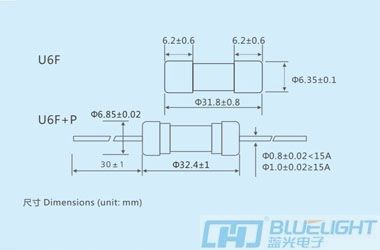

Φ6.3X32mm 玻璃保險絲管（快斷）/Φ6.3X32mm Glass Tube Fuses (Fast-acting)
材料Materials
本體Body：玻璃管Glass Tube
引線Lead：鍍錫銅線Tin Plated Copper
銅帽Cap：黃銅鍍鎳Nickel Plated Brass
可熔體Element：合金絲Alloy Wire
工作溫度Operating Temperature：-55℃ to + 125℃
可焊性Solder ability：260 ℃, ≤ 3s. (波峰焊wave) /350±10 ℃, ≤ 3s. (烙鐵焊soldering iron)
安規：UL/CUL Approved（詳細見下表）
 |  |
| 電氣特性 ELECTRICAL CHARACTERISTICS | ||||||||
額定電流 Rated Current | 熔斷時間 Opening Time | |||||||
| 100% | 135% | 200% | - | - | ||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 100mA-30A | 4hour | 1hour | - | 5sec. | - | - | - | - |
In accordance with UL248-1, UL248-14
| 分?jǐn)嗄芰?nbsp; INTERRUPTING RATING | |||||||
| UL | (100mA-10A)10000 amperes at 125V AC | ||||||
| (12A-30A)200 amperes at 125V AC | |||||||
| (100mA-1A)35 amperes at 250V AC | |||||||
| (1.25A-3.5A)100 amperes at 250V AC | |||||||
| (4A-10A)200 amperes at 250V AC | |||||||
| cURus | (12A-30A)200 amperes at 250V AC | ||||||
| 產品特性 PRODUCT FEATURES | |||||||
材質 Materials | 本體Body： 玻璃管 Class tube 引腳Lead：銅鍍錫 Tin plated copper wire 銅帽Cap： 黃銅鍍鎳 Nickel plated brass 熔絲Element：合金 Alloy | ||||||
操作溫度 Operating Temperature | -55℃~125℃ (需考慮溫度折減 Consider de-rating) | ||||||
可焊性 Solderability | 260℃, 3s Max. (波峰焊 Wave) 350±10℃, 3s Max.(烙鐵焊 Soldering iron) | ||||||
耐焊接熱 Resistance to Soldering Heat | 260℃, 10s Max. (波峰焊 Wave) 350℃, 5s Max.(烙鐵焊 Soldering iron) | ||||||
建議焊錫參數 Recommended Soldering Parameters | 波峰焊 Wave soldering parameter 錫爐溫度 Soldering por temperature: 260℃. 焊接時間 Solder dwell time: 2-5s Max. | ||||||
手工焊 Hand soldering parameter 烙鐵溫度 Soldering iron temperature 350±5℃ 焊接時間 Solder dwell time: 5s Max. | |||||||
儲存條件 Storage Conditions | 在溫度+10~60℃、相對濕度≤75%的密閉條件下可存放3年。 Can be stored for 3 years under tight seal condition at temperature +10~60℃ relative humidity ≤ 75%. | ||||||
在溫度+10~60℃、相對濕度為95%的非露天下最多可存放30天。 At most can be kept 30 days at temperture +10~60℃ relative humidity be 95% under covered conditions. | |||||||
產品部件號 Part NO. | 額定電流 Current Rating | 安全認證 Safety Approvals | I2T參考值 Reference (A2Sec.) | ||||||
|  |
|
|
|
|
| |||
| U6F 0100 | 100mA | ● | 0.002 | ||||||
| U6F 0125 | 125mA | ● | 0.0031 | ||||||
| U6F 0160 | 160mA | ● | 0.0051 | ||||||
| U6F 0200 | 200mA | ● | 0.0082 | ||||||
| U6F 0250 | 250mA | ● | 0.0125 | ||||||
| U6F 0315 | 315mA | ● | 0.0172 | ||||||
| U6F 0400 | 400mA | ● | 0.0342 | ||||||
| U6F 0500 | 500mA | ● | 0.071 | ||||||
| U6F 0630 | 630mA | ● | 0.121 | ||||||
| U6F 0800 | 800mA | ● | 0.292 | ||||||
| U6F 1100 | 1A | ● | 0.630 | ||||||
| U6F 1125 | 1.25A | ● | 0.725 | ||||||
| U6F 1150 | 1.5A | ● | 1.690 | ||||||
| U6F 1160 | 1.6A | ● | 1.720 | ||||||
| U6F 1200 | 2A | ● | 5.913 | ||||||
| U6F 1250 | 2.5A | ● | 9.747 | ||||||
| U6F 1300 | 3A | ● | 10.22 | ||||||
| U6F 1315 | 3.15A | ● | 20.56 | ||||||
| U6F 1350 | 3.5A | ● | 21.23 | ||||||
| U6F 1400 | 4A | ● | 31.31 | ||||||
| U6F 1500 | 5A | ● | 52.49 | ||||||
| U6F 1630 | 6.3A | ● | 117.1 | ||||||
| U6F 1700 | 7A | ● | 125.5 | ||||||
| U6F 1800 | 8A | ● | 132.3 | ||||||
| U6F 2100 | 10A | ● | 253.4 | ||||||
| U6F 2100 | 12A | ● | 460.0 | ||||||
| U6F 2150 | 15A | ● | 802.0 | ||||||
| U6F 2200 | 20A | ● | 1825 | ||||||
| U6F 2250 | 25A | ● | 2586 | ||||||
| U6F 2300 | 30A | ● | 3002 | ||||||
